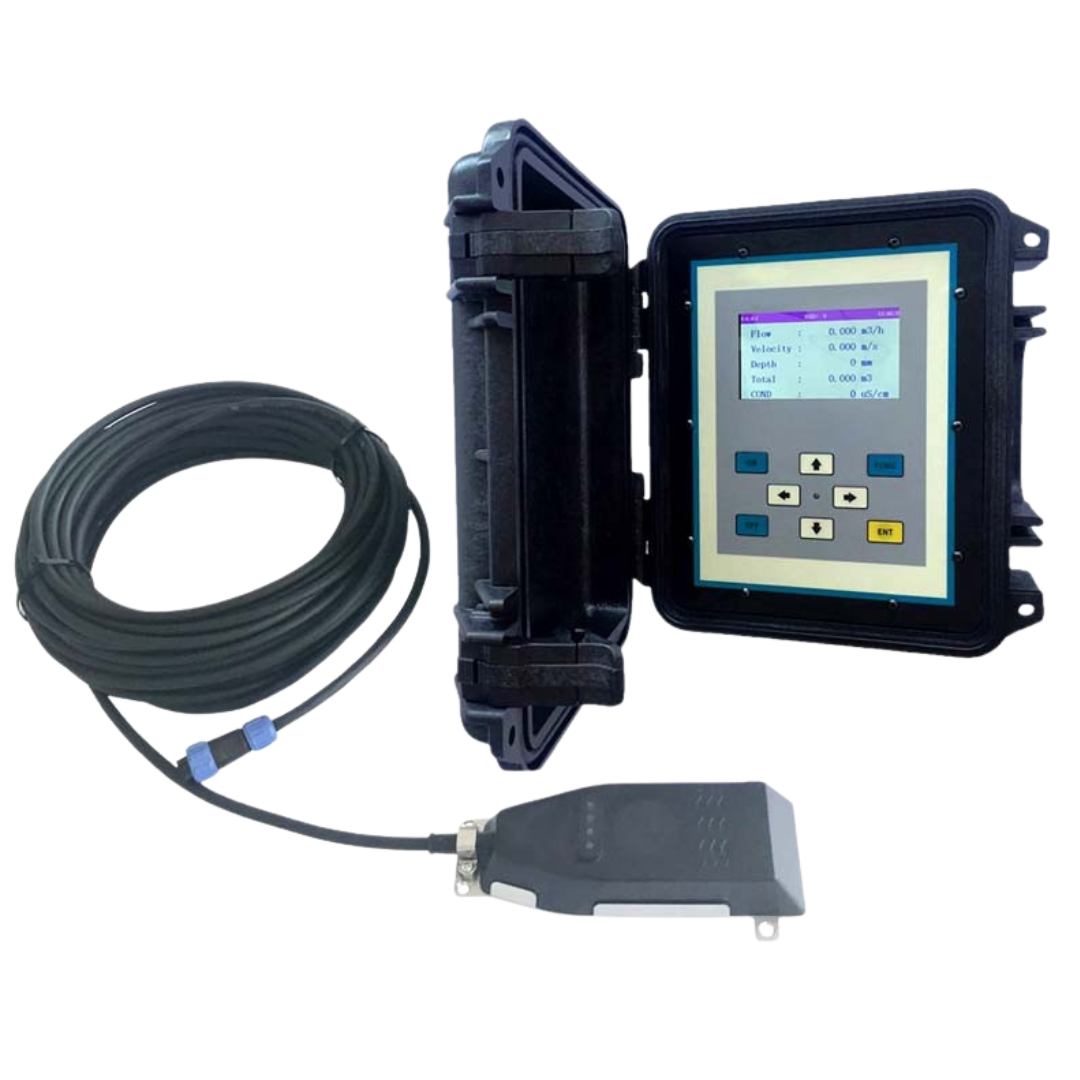

Open channel flowmeter DCO 900 P

The rechargeable battery offers up to 50 hours of autonomy.

The fluid must contain a certain amount of air bubbles or suspended solid particles.

20 coordinate points to describe the cross-section of the river’s shape.
Measurement of flow velocity, depth, and fluid conductivity. Flow velocity range: 0.02 to 0.8 m/s; 0.02 to 1.6 m/s; 0.02 to 3.2 m/s; 0.02 to 6.4 m/s; 0.02 to 13.2 m/s; bidirectional, 1% accuracy.

Depth can be measured using a pressure sensor or an ultrasonic level sensor.
Depth range: 0.02 to 5 m (for the ultrasonic principle, error: ±1 mm); 0 to 10 m (for the pressure principle, error: ±2 mm). Flow velocity measurement in both directions (forward and reverse flow).
With coordinate correction and pressure compensation functions.
Transducer design with IP68 epoxy-sealed housing for extended underwater operation.
Optional RS485 communication (MODBUS protocol) for connection to a host computer.
