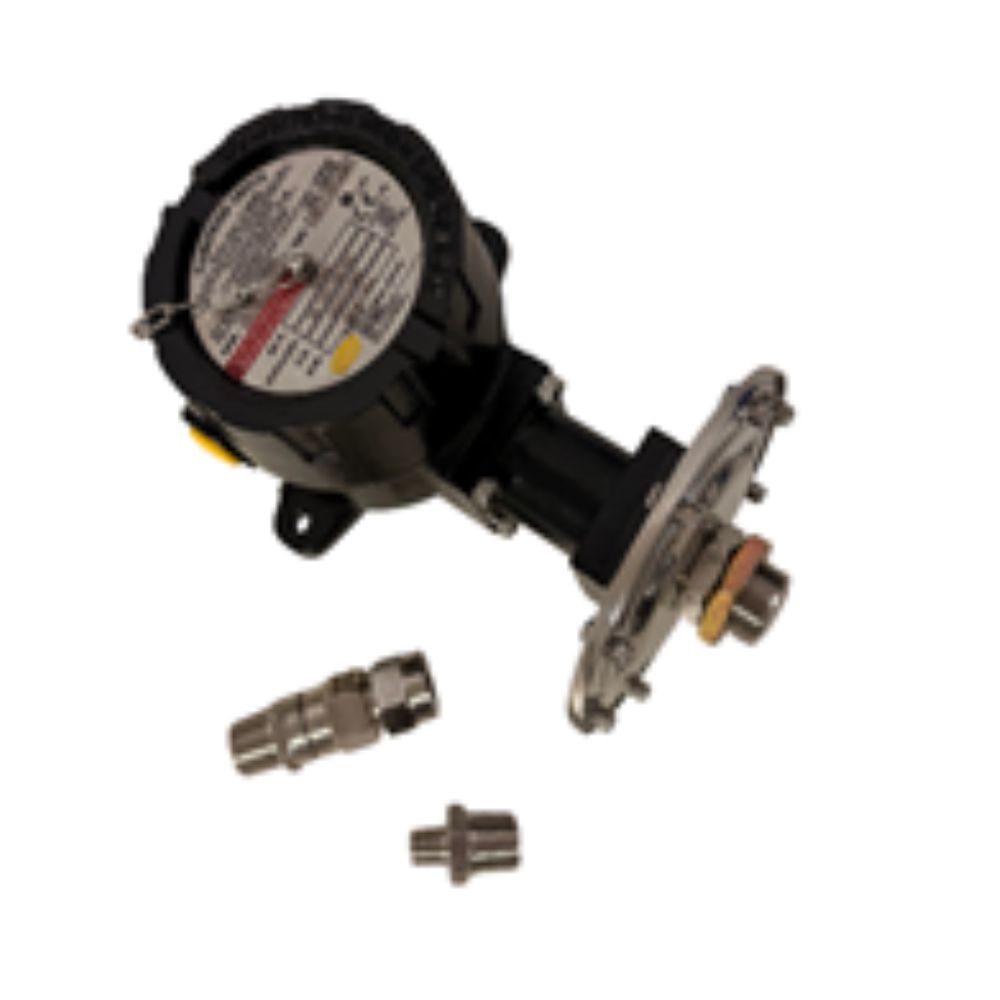

hydraulic pressure switch

The minimum differential increases with the setpoint.

The differential values ​​mentioned in the table above are approximate maximums for the FSR.
The differential value will vary depending on the selected pressure range and the type of microswitch.
For actual differential values, please contact the sales office. When using a 2SPDT switching configuration, both microswitches may not activate or deactivate at the exact same point.
A small offset may be observed, typically up to ±5% of the FSR (depending on the range code).
The on-off differential (hysteresis) is usually at least twice the published values ​​for 1SPDT pressure switches. If activation and/or deactivation at the same point is critical to the operation, this can be achieved using a separate DPDT relay.
This relay will require a separate power supply for its coil.
